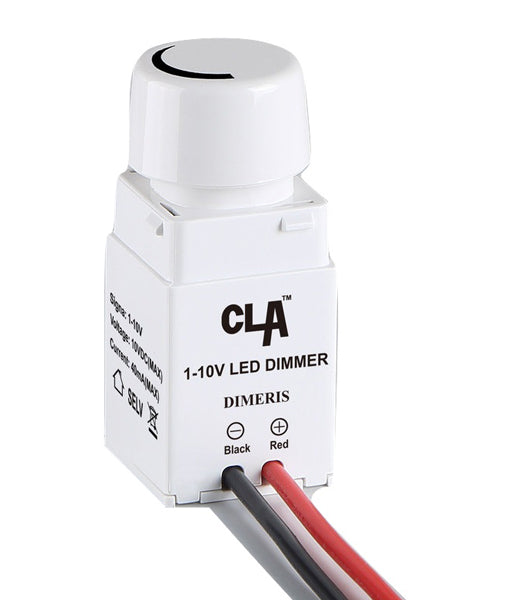

DIMERIS: 1-10V Rotary Controlled LED Dimmer

• The 1-10V LED Dimmer is a low cost rotary regulator for controlling dimmable analogue LED drivers
• Suitable for LED lighting, dimmable electronic ballasts, electronic transformers and 240V halogen and incandescent lamps
• The 1-10V LED Dimmer uses a shunt voltage regulation technique
• Maximum load: 10V/40mA
• Maximum output cable length: 50m
• Fits Australian wall switches
• Soft start
• IP20 rated
• Suitable for CLA HIB7
• Warranty: 2 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)
